JIMI GT800 GPS+LBS tracking waterproof multifunctional vehicle GPS tracker with door status detection

FOB Reference Price:Get Latest Price
$1.00 - $40.00 / Piece | 100 Piece/Pieces (Min. Order)
Screen Size:
NO Screen
Color:
Memory Capacity:
64Mb
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 Negotiable
Customization:
Customized packaging (Min. Order: 1000 Pieces)
Graphic customization (Min. Order: 1000 Pieces)

More

Customized logo (Min. Order: 1000 Pieces) Less
Samples:
$40.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Gps Tracker
Use:
AUTOMOTIVE
Function:
vehicle GPS tracker
Place of Origin:
Guangdong, China
Brand Name:
JIMI
Model Number:
GT800
Warranty:
12 Months
Feature 1:
GPS & LBS positioning
Feature 2:
IP66 dust and water resistance
Feature 3:
32+32Mb data storage
Feature 4:
RS232 & TTL serial port
Feature 5:
Remote cut-off (fuel/power)
Feature 6:
Two-way communication
Feature 7:
Emergency SOS button
Feature 8:
Multiple I/O for sensor/peripherals
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month wholesale gps tracker
Packaging & Delivery
Packaging Details
1. Dimentions: 90.3x76.0x18.0 (mm) Weight: 95g
2. Box size: 218x148x66(mm) Weight:546g
3. Carton size: 45.5x34.5x31.5(cm) Weight:14.15kg/Carton 20pcs/Carton
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 To be negotiated

JIMI Fleet Management Solutions
Optimize your fleet and keep costs down

Dynamic growth of automotive branch enables greater access to means of transport. Most companies have, smaller or larger, vehicle fleet to carry out various tasks. Understanding costs related to the vehicle maintenance, fuel consumption, driver performance, insurance and service is an important function for any business.
HARDWARE
Vehicle Series
Asset Series
Car DVR Series

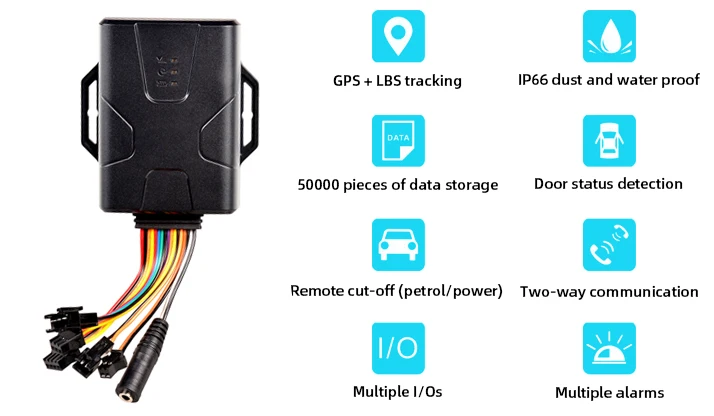

GT800 Multifunctional Vehicle GPS Tracker

The GT800 GPS vehicle tracker is a high-end, multifunctional vehicle tracker with solid performance and reasonable price. In addition to GPS and AGPS tracking, it supports door status detection, two-way communication as well as SOS call. The IP66 dust and waterproof rating means that the GT800 can stand up to the toughest of driving conditions, allowing you to constantly keep an eye on your fleet.

Features:

1.GSM 850 / 900 / 1800 / 1900 MHZ Quad-band
2.Web-based online tracking platform and App
3.Geo-fence alarm function
4.High sensitive GPS chipset
5.Built-in GSM & GPS antenna
6.ACC status detection and alarm
7.IP66 protection grade
8.Compact size and fast installation design
9.Remote cut off (petrol / electricity) function
10.Built-in battery standby when the engine is off

Specifications:
GSM Specification
GSM frequency
850/900/1800/1900 MHz
GPRS
Class 12, TCP/IP
Memory
64 Mb
Phase error
RMSPE<5,PPE<20
Max output
GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3dBm
Max frequency error
±0.1ppm
GPS Specification
GPS chipset
MTK high sensitivity chip
Frequency
L1,1575.42MHz C/A code
GPS channel
66
Location accuracy
<10 meters
Tracking sensitivity
-162dBm
Acquisition sensitivity
-148dBm
TTFF (open sky)
Avg. hot start ≤1sec

Avg. cold start ≤32sec
Others
Voice monitoring range
≤5 meters
Battery
800mAh/3.7V Li-Polymer battery
Working voltage/current
9-36VDC/45mA(12VDC), 28mA(24VDC)
Operating temperature
-20℃~ 70℃
Dimension
93.0(L)*76.0(W)*18.0(H)mm
Weight
91.7g

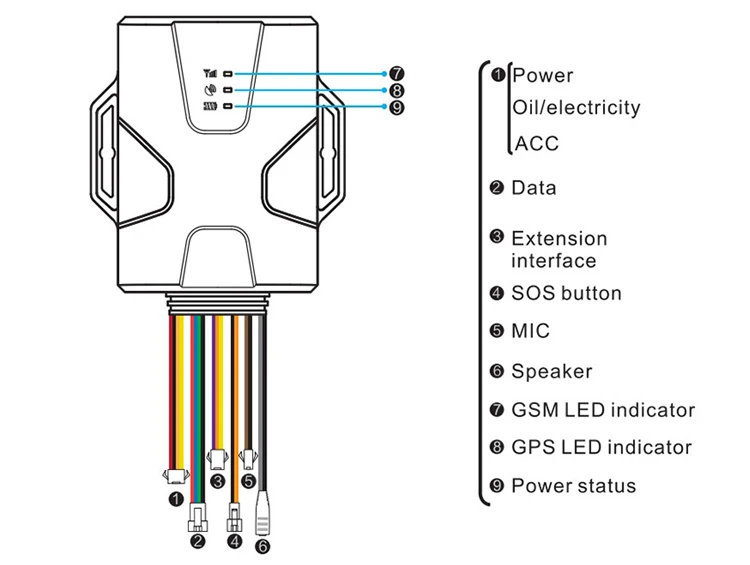

Appearance:
