JIMI LG01 tracking device waterproof tracking asset gps tracking mini tracker

FOB Reference Price:Get Latest Price
$1.00 - $35.00 / Piece | 100 Piece/Pieces (Min. Order)
Color:
black
Screen Size:
None
Memory Capacity:
32+32mb
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples:
$35.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Gps Tracker
Use:
AUTOMOTIVE
Function:
Tamper Alert
Place of Origin:
Guangdong, China
Brand Name:
JIMI
Model Number:
JM-LG01
Warranty:
12 Months
Feature 1:
GPS & WIFI & LBS positioning
Feature 2:
Tamper alert
Feature 3:
2800mAh disposable battery
Feature 4:
Intelligent power management
Feature 5:
IPX5 water resistance
Feature 6:
Strong magnet mount
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Gift box
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated
HARDWARE
Vehicle Series
Asset Series
Car DVR Series

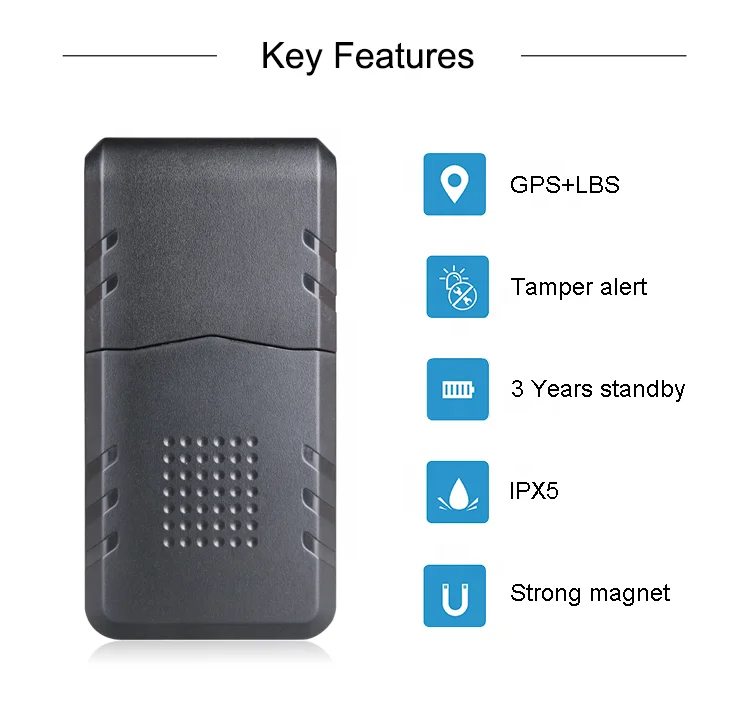

JM-LG01 Asset GPS Tracker

JM-LG01 is an asset tracking solution that allows you to locate, monitor and optimize your non-powered assets. With a battery life of up to 3 years, you can stick it on just about anything you want to keep track of.

Features:

1.GPS & LBS positioning
Allow the location to be pinpointed in real time or periodically
2.Tamper alert
Be notified of any removal from original installation
3.2800mAh disposable battery
3 years standby (one positioning data uploaded per day)
4.Intelligent power management
Reduce inefficient power consumption when the device stays idle
5.IPX5 water resistance
Water-resistant case to ensure stable operation in tough environment
6.Strong magnet mount
Strong magnetic cover allowing for flexible mounting on vehicles or assets
Specifications:
GSM Specification
GSM frequency
850/900/1800/1900MHz
GPRS
Class 12, TCP/IP
Memory
32 + 32 Mb
Phase error
RMSPE<5,PPE<20
Max output
GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3dBm
Max frequency error
±0.1ppm
Receive sensitivity
Class II RBER2%(-102dBm)
GPS Specification
Chipset
High sensitivity GPS chips
Frequency
GPS L1, 1575.42MHz
Channel
66
Location accuracy
<10 meters
Tracking sensitivity
-165dBm
Acquisition sensitivity
-148dBm
TTFF (open sky)
Avg. hot start ≤1sec

Avg. cold start ≤32sec
Others
Antenna
Built-in quad band GSM antenna, GPS ceramic antenna
LED indicator
Red: working status
Working voltage/current
3VDC/50mA
Battery
2800mAh/3.0V lithium manganese battery
Tracking time
45 hours (GPS is always on)
Standby
3 years ( one positioning data uploaded per day)
Operating temperature
-20℃~+70℃
Water proof grade
IPx5
Device weight
72g; 94g (with magnetic cover)
Device dimension
82.0 x 42.0x 20.0mm
