JIMI JC400 AI 4g gps wifi hotspot DMS dashcam

FOB Reference Price:Get Latest Price
$1.00 - $200.00 / Piece | 50.0 Piece/Pieces (Min. Order)
Color:
black
Memory Capacity:
16GB 32GB 64GB 128GB
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples:
$200.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Certification:
CE
Place of Origin:
Guangdong, China
Brand Name:
JIMI
Model Number:
JC400
Warranty:
12 Months Months
1:
4G+3G+2G+WIFI+BLE
2:
GPS Tracking
3:
Event Video to Cloud
4:
Panic Button
5:
Android 8.1 Go
6:
Front (1080P) / Wired Detached Camera for Live Video
7:
Engine Cut-Off
8:
Locked SIM/ SD Card Design
9:
Driver's Behavior Analysis
10:
Open I/O for OBD/CANBUS/RS232
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Giftbox size: 21.5*11.5*10cm
Carton Size: 54*2.5*24.7 / G.W: 9.36KG
Carton Qty: 10pcs/ctn
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Video Description

JC400 AiVision Cam

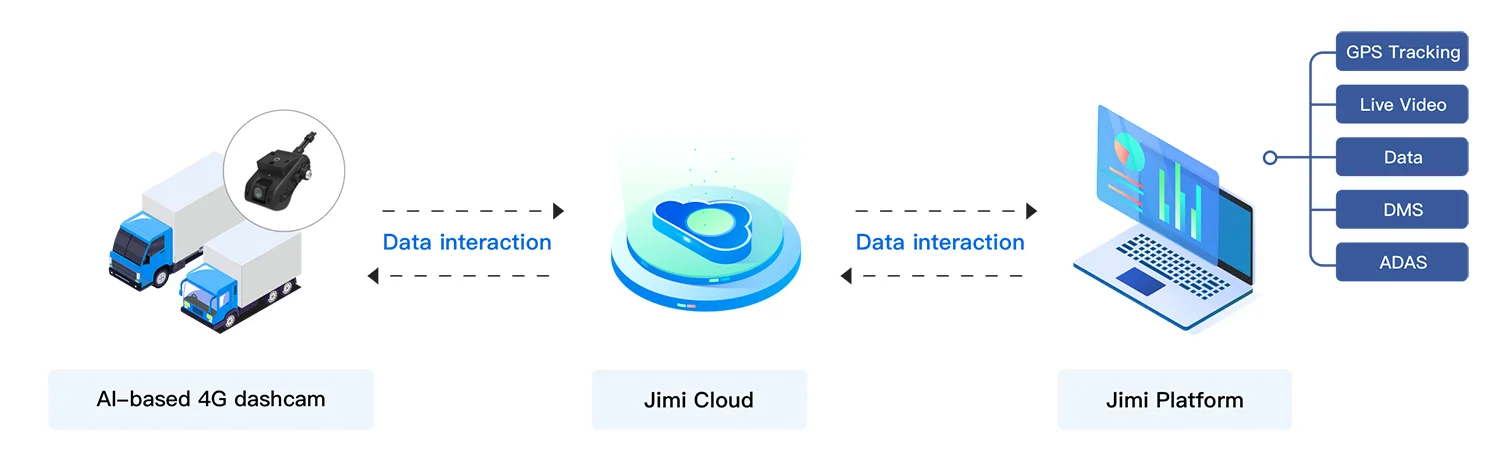

HARDWARE + SOFTWARE

A great companion for daily drives and long trips, the JC400 dual camera records what's happening on the road to tackle crime and bad motorists and resolve disputes from incidents quicker. Unlike ordinary dashcam models, JC400 AiVision cam houses both 4G Wi-Fi and GPS in one device to provide comprehensive footage recording with fewer cords to think about.
HARDWARE
JC200
JC400D
WeTrack140
Key Functions:
4G+3G+2G+WIFI+BLE
GPS Tracking
Event Video to Cloud
Front (1080P) / Wired Detached Camera for Live Video
Panic Button
Android 8.1 Go
Engine Cut-Off
Locked SIM/ SD Card Design
Driver's Behavior Analysis
Open I/O for OBD/CANBUS/RS232

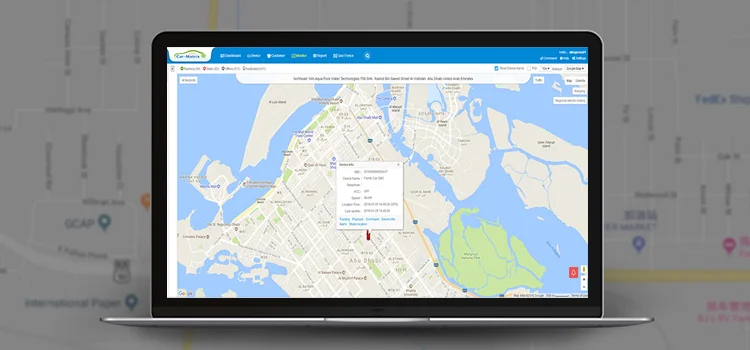

GPS Tracking

JC100 can help fleet managers to know exactly where individual vehicles are at any given time to increase visibility into their fleet operations and vehicle safety.

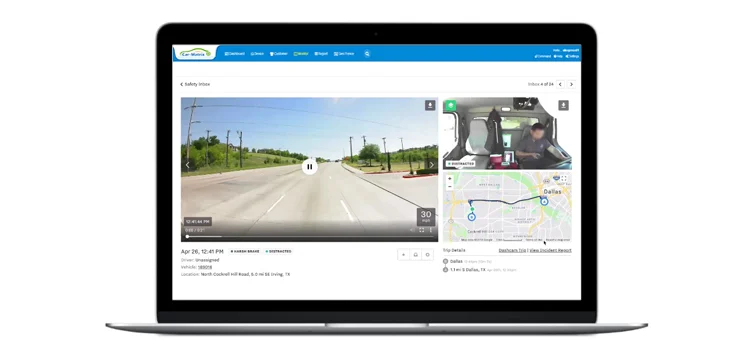

Stream Live

With remote access to everything, you can stream a vehicle's cameras in real-time or stream any moment of historical footage from storage without having to physically access the vehicle.

G-Sensor

With G-Sensor, in car crash or sudden brake, video clip will be saved as separate file and will not be deleted.

Driver's Behavior Analysis

Alarms while the device detects the inappropriate driver's behaviors like:
1、Harsh Acceleration
2、Hard Braking
3、Sharp Turn
4、Over Speed

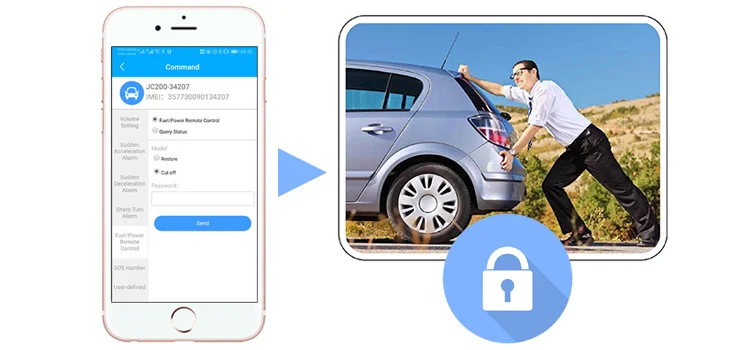

Fuel Remote Cut off

When the vehicle is in a state of burglary, the GPS monitoring platform may actively issue a fuel cut-off command to cut off the oil passage of the stolen vehicle under the premise of ensuring that the vehicle is in safe driving, so as to achieve the purpose of not being able to continue to start the vehicle.

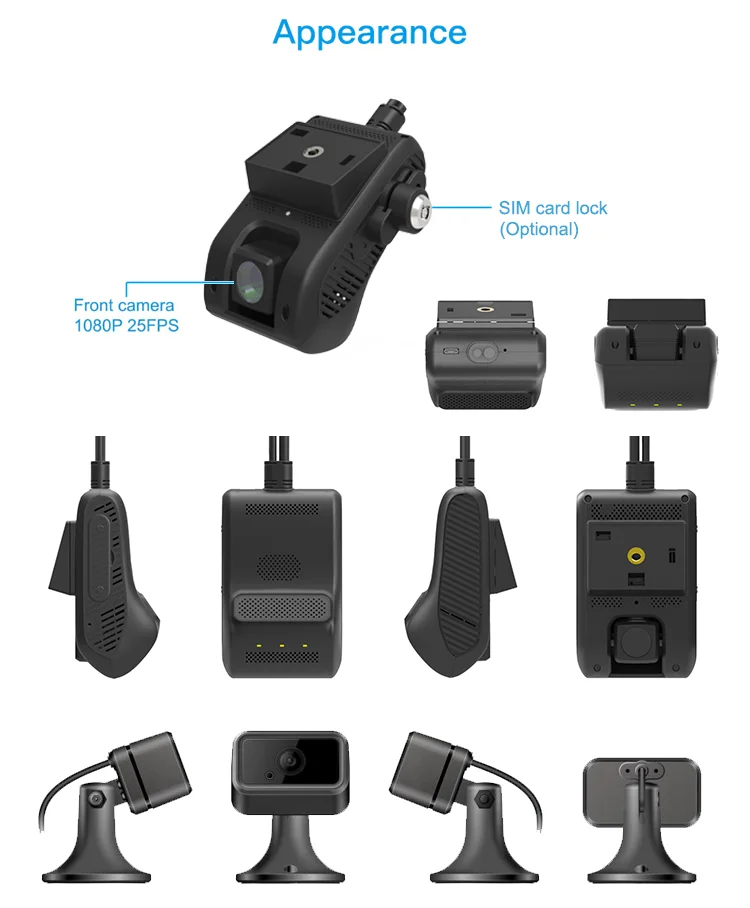

Appearance:
Specifications:
Category
Item
Specification
Remark
Network
Connection
Network
4G+3G+2G
FDD:B1, B3, B5, B7, B8, B20
TDD:B38, B39, B40, B41 (100M)
WCDMA:850/900/1900/2100
TD:1900/2100
GSM:850/900/1800/1900
Wi-Fi
802.11 b/g/n
BT
BT4.0
Hardware
CPU
Quad-core 1.4GHz
ARM Cortex A53 @1.4GHz
OS
Android
Android 8.1 GO
Flash memory
RAM+ROM
LPDDR3 1GB+eMMC 16G
Front camera
Forward recording
Built-in, AHD, 1080P, dynamic frame rate, 140°viewing angle
Detached camera
Detached camera
Detached camera, AHD, 720P, dynamic frame rate, 120° viewing angle, night vision
GPS module
GPS+BDS
Built-in ceramic antenna
G-Sensor
Accelerometer, Gyroscope
6 axis
MIC & Speaker
Built-in
SD card
LED
Red (Power)
Blue (GPRS)
Green (GPS)
I/O
Configuration
B+
GND
ACC
Ignition detection
Relay
Immobiliztion
Remote engine cut-off
UART I/O
RX
TX
+5V
GND
SOS
Panic button
Power
Supply Voltage
DC 9-36V
work for car, truck, bus, electric automobile etc.
Battery
For emergency situation when car battery is disconnected
Size
Dimension
109*69*52
Weight
233g
SOFTWARE
Tracksolid (www.tracksolid.com)
