JIMI AT6 3G IP65 10000mAh gps asset tracking device tracker

FOB Reference Price:Get Latest Price
$1.00 - $100.00 / Piece | 100 Piece/Pieces (Min. Order)
Color:
Black
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Asset tracker
Place of Origin:
Guangdong, China
Brand Name:
JIMI/OEM
Warranty:
1Y
Model Number:
AT6
Use:
ASSET
Features 1:
WCDMA & GSM
Features 2:
Intelligent power management
Features 3:
Voice monitoring
Features 4:
Tamper alert
Features 5:
IP65 dust and water proof
Features 6:
10000mAh battery
Features 7:
Strong magnet
Features 8:
Cover dismantlement alarm
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Box size: 16*10.2*5.1(cm)
Weight:500.7g
Carton qty.:20 pcs
Carton size: 33*27*22 (cm)
Weight: 10.4kgKG
Standard Accessories: Plug, magnet (with 3M sticker), power cable
Port
SHENZHEN
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 To be negotiated
HARDWARE
Vehicle Series
Asset Series
Car DVR Series

AT6 3G Asset GPS Tracker

AT6 is a 3G GPS asset tracker equipped with a high powered lithium-ion battery which can last between 7 weeks and 2 years, depending on the reporting interval. The magnetic, waterproof housing allows the AT6 to be easily and inconspicuously placed inside or underneath a vehicle or other asset.

Features:

WCDMA & GSM
●Intelligent power saving
●IP65 waterproof grade
●Tamper alert
●Strong magnet
●Fast charging
●10000mAh battery
●Voice monitoring
Specifications:
WCDMA/GSM Specification
Communication system
WCDMA/GSM
Frequency
GSM: 850/900/1800/1900MHz
WCDMA: 850/900/1900/2100MHz (B1/B2/B5/B8)
GPRS
Class 12, TCP/IP
Memory
32 + 32 Mb
Phase error
RMSPE<5,PPE<20
Max output
GSM850/GSM900:33dBm
GSM1800/GSM1900:30dBm
WCDMA:24dBm
Max frequency error
±0.1ppm
Receive sensitivity
GSM<-106dBm, WCDMA<-102dBm
GPS Specification
GPS chipset
U-blox 7020c
Frequency
GPS L1, 1575.42MHz
Channel
66
Location accuracy
<10 meters
Tracking sensitivity
-162dBm
Acquisition sensitivity
-149dBm
TTFF (open sky)
Avg. hot start≤1sec; Avg. cold start≤45sec
Others
Switch
1 for power control
Button
1 for power on/off; 1 for cover remove alarm;
1 for tamper/disassemble alarm
GPS antenna
GPS ceramic antenna
LED indicator
1 red LED for GSM; 4 blue LEDs for battery
Standby
2 years( GSM off, one position per day);
50 days (GPRS always connected, GPS sleep);
120 hours (GPS always on)
Operating temperature
-20℃ ~+70 ℃
Battery
10000mAh/3.7V lithium polymer battery
Dimension
108.5*61*30mm
Weight
286g

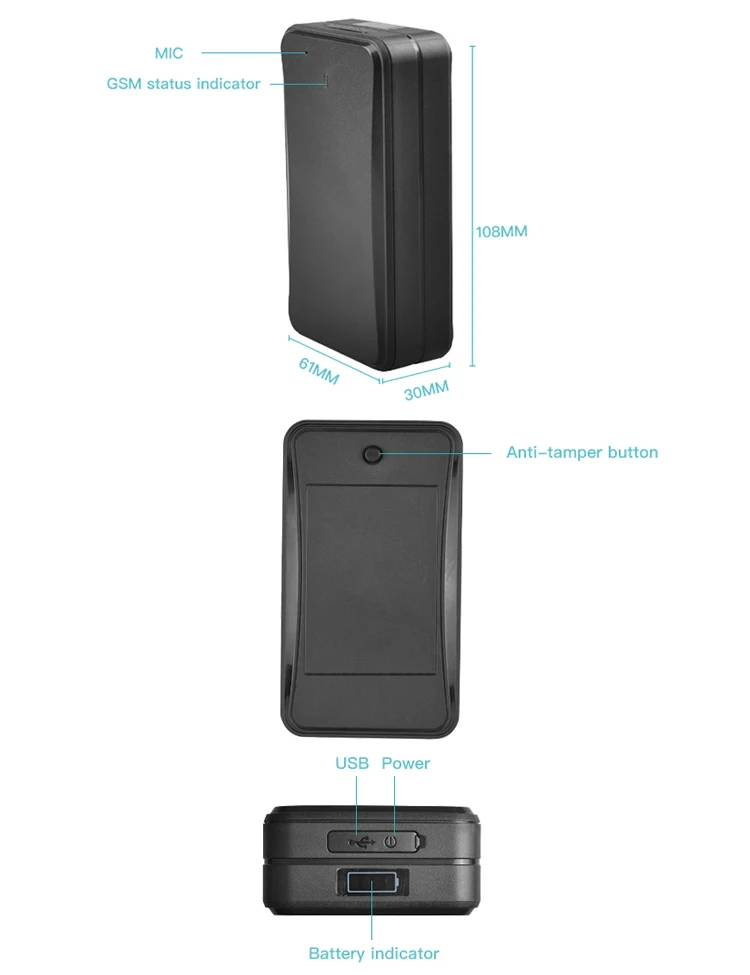

Appearance:
Certificates:
CE FCC
