JIMI JC400D AI 4G DMS Dashcam

FOB Reference Price:Get Latest Price
$1.00 - $200.00 / Piece | 50.0 Piece/Pieces (Min. Order)
Color:
Black
Memory Capacity:
16GB 32GB 64GB 128GB
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples:
$200.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Certification:
ce
Place of Origin:
Guangdong, China
Brand Name:
JIMI
Model Number:
JC400D
Warranty:
12 Months Months
1:
4G+WiFi+BLE
2:
Front (1080P) / Wired Detached Camera for Live Video
3:
Panic Button
4:
Driver's Behavior Analysis
5:
Event Video to Cloud
6:
DMS (Driver Monitoring System)
7:
GPS Tracking
8:
Engine Cut-off
9:
Locked SIM/ SD Card Design
10:
Open I/O for OBD/CANBUS/RS232
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Giftbox size: 21.5*11.5*10cm
Carton Size: 54*2.5*24.7 / G.W: 9.36KG
Carton Qty: 10pcs/ctn
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Video Description

JC400D AI dash cam
HARDWARE + SOFTWARE

JC400D AI dash cam is the top-rated integrated video telematics HD dash cam solution for fleets. Using DMS technology enabled with dashcam, you can capture what matters, coach your drivers, mitigate risk, defend against fraudulent insurance claims and protect your business reputation.
HARDWARE
Key Functions:

GPS Tracking

JC100 can help fleet managers to know exactly where individual vehicles are at any given time to increase visibility into their fleet operations and vehicle safety.

Stream Live

With remote access to everything, you can stream a vehicle's cameras in real-time or stream any moment of historical footage from storage without having to physically access the vehicle.

G-Sensor

With G-Sensor, in car crash or sudden brake, video clip will be saved as separate file and will not be deleted.

Driver's Behavior Analysis

Alarms while the device detects the inappropriate driver's behaviors like:
1、Harsh Acceleration
2、Hard Braking
3、Sharp Turn
4、Over Speed

Fuel Remote Cut off

When the vehicle is in a state of burglary, the GPS monitoring platform may actively issue a fuel cut-off command to cut off the oil passage of the stolen vehicle under the premise of ensuring that the vehicle is in safe driving, so as to achieve the purpose of not being able to continue to start the vehicle.

DMS

The driver monitoring systems is to alert the driver when signs of drowsiness or distraction(smoking, phone-call etc) are detected. Drivers receive an audio warning, while fleet managers receive an alert - which can include a photo capturing the
incident.

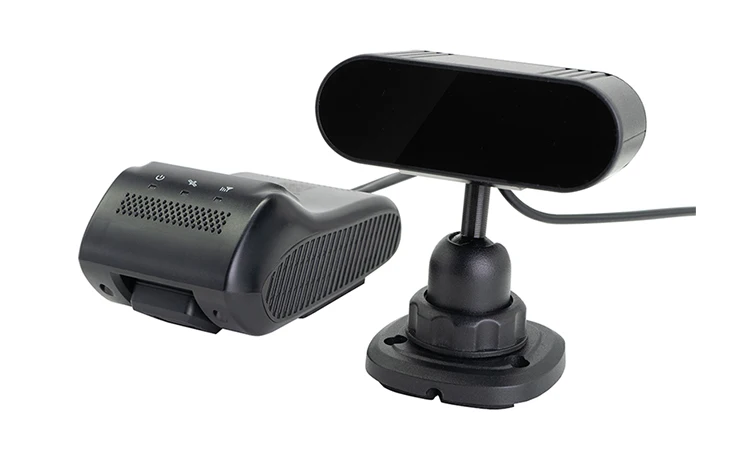

Appearance:
Specifications:
Category
Item
Specification
Remark
Network
Connection
Network
4G+3G+2G
FDD:B1, B3, B5, B7, B8, B20
TDD:B38, B39, B40, B41 (100M)
WCDMA:850/900/1900/2100
TD:1900/2100
GSM:850/900/1800/1900
Wi-Fi
802.11 b/g/n
BT
BT4.0
Hardware
CPU
Quad-core 1.4GHz
ARM Cortex A53 @1.4GHz
OS
Android
Android 8.1 GO
Flash memory
RAM+ROM
LPDDR3 1GB+eMMC 8G
Front camera
Forward recording
Built-in, AHD, 1080P, dynamic frame rate, 140°viewing angle
Inward recording camera
Inward recording camera
Built-in or External, AHD, 720P, dynamic frame rate, 120° viewing angle, night vision
DMS camera
External, 720P, 55°viewing angle, night vision
GPS module
GPS+BDS
Built-in ceramic antenna
G-Sensor
Accelerometer, Gyroscope
6 axis
MIC & Speaker
Built-in
SD card
LED
Red (Power)
Blue (GPRS)
Green (GPS)
I/O
Configuration
B+
GND
ACC
Ignition detection
Relay
Immobiliztion
Remote engine cut-off
UART I/O
RX
TX
+5V
GND
SOS
Panic button
Power
Supply Voltage
DC 9-36V
work for car, truck, bus, electric automobile etc.
Battery
For emergency situation when car battery is disconnected
Size
Dimension
109*69*52
Weight
233g
SOFTWARE
Tracksolid
