JIMI JC500 mdvr tracker

FOB Reference Price:Get Latest Price
$120.00 - $180.00 / Piece | 100 Piece/Pieces (Min. Order)
Screen Size:
Other
Memory Capacity:
16GB 32GB 64GB 128GB
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples:
$180.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
GPS Tracker
Use:
Automotive
Function:
MDVR
Place of Origin:
Guangdong, China
Brand Name:
JIMI
Model Number:
JC500
Warranty:
12 Months
1:
LTE
2:
WiFi Hotspot
3:
2 x RS323
4:
DMS (Driver Monitoring System)
5:
Driver's Behavior Analysis
6:
Panic Button
7:
G-Force Sensor
8:
Remote Engine Cut-off
9:
Live Steaming Video
10:
GPS Tracking Web & APP
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week smart gps tracker
Packaging & Delivery
Packaging Details
Giftbox size: 21.5*11.5*10cm
Carton Size: 54*2.5*24.7 / G.W: 9.36KG
Carton Qty: 10pcs/ctn
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated

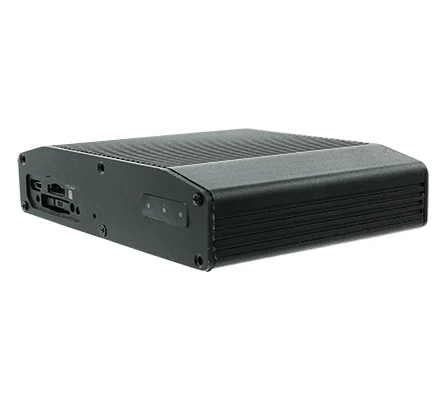

JC500 LTE Mobile DVR
Video telematics solution for heavy duty vehicles

JC500 is a multi-functional device suitable for heavy vehicle video telematics. It has multiple sockets to support various external devices to achieve more communication expansion capabilities in diverse application scenarios.
HARDWARE
Features:
LTE
WiFi Hotspot
2 x RS323
DMS (Driver Monitoring System)
Driver's Behavior Analysis
Panic Button
G-Force Sensor
Remote Engine Cut-off
Live Steaming Video
GPS Tracking Web & APP

1. Support Various External Devices

JC500 has two RS232 serial ports to support various external devices, such as RFID reader, fuel sensor, CAMBUS data transmission, OBD data transmission, to achieve multi functional scene applications.

2. Driver Monitoring System(DMS)

●Drowsiness
Drivers of long-distance trucks,vans,taxis,and taxi drivers are prone to fatigue driving because they stay in the driving position for along time.
●Distraction
Distracted driving behavior like phone calls, eating, and smoking are also one of the Causes of fatal accidents
●Driver Monitoring System
Using DMS technology, JC400D monitors such potentially dangerous and illegal Behaviors and alerts the driver when signs of drowsiness or distraction are detected.

3. Driver Behaviour Monitoring

Control the driver's driving dynamics, rationalize the driver's behaviors such as harsh
acceleration, rapid deceleration, and sudden hard braking to reduce the accident rate and improve fuel economy of the fleet.
●Harsh Acceleration
●Hard Braking
●Sharp Turn

4. Event Video to the cloud

In the event of a serious accident or collision, the video will be automatically transmitted. With the 4G connection, you can get faster data speed and larger Network coverage, and respond immediately.

5. Comprehensive protection of drivers and assets

After installing the JC500, you can place two detached cameras, which can be placed in the cockpit to observe your driver or can be placed behind the truck to protect your property.
Specifications:
Category
Item
Specification
Remark
Main Chips
OS
Android 8.1 GO
System
ARM Cortex A53, 2GB+16GB
Network band
LTE/WCDMA/GSM
FDD_LTE: B1/B2/B3/B4/B5/B7/B8 /B17/B20
Features
DVR
Two-channel video recording simultaneously
H.264 encoding;
Loop-Recording;
MP4
Live view
In-car/front-car live video streaming via APP
RTMP live stream
Remote video/picture
Video playback
Playback the history videos pre-stored in TF card
Voice monitoring
Interface
RS232
Open for RFID reader, Fuel sensor, CANBUS data transmitting, OBD data transmitting
SOS
Panic button
ACC detection
ADC
12V/24V
Remote engine cut-off
USB data interface
Hardware
Cameras
Front camera
HD 720P, viewing angle 100°
Inward/ Rear camera
AHD, 1080P, viewing angle 120° , cable length maxim 10M, open for Driver's fatigue driving detection.
Wi-Fi
IEEE802.11 b/g/n
Bluetooth
Data transferring
BT4.0, open for ibeacon, TPMS, OBD etc.
G-Sensor
Light-Sensor
Gyroscope
Battery
External battery
lithium Polymer battery, 450mAh
GPS antenna
External
MIC & Speaker
TF card
Max 128GB
Working temperature
-20℃ ~+70℃
SOFTWARE
Tracksolid
COMPANY PROFILE
JIMI IOT
As a leading provider of IoT Solutions, Jimi is passionate about the design, intelligent manufacture, sales and operation of Intelligent Security Products & Solutions. Over the past 20 years, our solutions and products have been widely praised by the customers from 150+ countries and regions to help customers add value in intelligent security industry.
Our Team
We have 6 R&D Centers,600+ experienced engenieers,260+ invention patents,totally 2000+ employees.
Our Smart Factory
Automated factory is at the heart of Jimi's product manufacturing. Jimi is determined to provide ever more valuable support to the partners worldwide through the optimization and refinement of all aspects of our own business.
SMT Error Avoidance System
MES
Unattended Warehouse
You name it, we make it!
Provide customized services to achieve customers’ requests from ideas to reality.
Customers & Partners
We has expanded our business to 150+ countries and worked with exclusive/vip distributor in 20+ countries.
